CSC 306 Introduction to Programming with C++

Using Streams for I/O

Chapter 5.1-5.2 (until page 229)

Objectives

• Learn about C++ streams in the context of file-handling
• Learn to open and close files for input or output

Important Definitions

• file, streams, input streams, output streams
• object, instance, class, member function
• open file, close file, reading, writing
• C-string, class, connect,

Files, Streams and Classes

Reading and writing to a file involves using streams. A stream is essentially a channel in which data flows from the source to a destination. Input streams direct data from a source, such as the keyboard or a file into variables of a program, and output streams send data out. As you may have realized by now, the standard input stream cin is an input stream from the keyboard and the standard output stream cout sends data to the screen. Input and output streams such as "cin" and "cout" are examples of stream objects. Learning about streams now as objects is a good way to introduce some of the syntax and ideas behind the object-oriented aspect of C++.

To use file input and output streams, we will need to include a C++ header file called <fstream> that contains the necessary operations to perform these functions. Programs that read and write to disk must therefore have the following include directive at the top:

	#include <fstream>

Finally, like variables, you must declare any file streams before you can use them. These declarations are usually at the top of the source code or function definitions, and have the format of "ifstream in-name" for input and "ofstream out-name" for output streams. For example, the following statements inform the compiler to create a stream called in_stream that is an input-file-stream object and another called out_stream that is an output-file-stream object:

	ifstream in_stream; ofstream out_stream;

Objects are instances of a class type. We will explore classes in more detail later, but for now you can think of them as a complex variable type.

WARNING:	This analogy works up to a point. For example, you cannot use assignments with class objects, so the following code fragment will not work: in-stream = 5; // given that in-stream is declared a ifstream

Member Functions

// Use cout's member function "set flags" function, called setf
// The argument here means to use fixed point rather than scientific notation
cout.setf(ios::fixed);

// Use cout's setf function again, but this time, the argument tells cout to
// show the decimal point.
cout.setf(ios::showpoint);

// Use cout's member function, called precision
// The argument indicates to display 2 digits of precision after the decimal point
cout.precision(2);

File Operations

1. Opening and Closing Files

   Having created a stream with the declaration, we can connect it to a file (i.e. open the file) using the member function open(filename). For example, the following statement will 1) open a file called "myFile", assuming one with that exists in the current directory (more on this later), and 2) connect in_stream to the beginning of the file:

   	in_stream.open("myFile");

   Once connected, the program can read from that file. Pictorially, this is what happens:



   The ofstream class also has an open(...) member function, but it is defined differently. Consider the following statement:

   	out_stream.open("myFile");

   This also connects out_stream to "myFile", but because out_stream is an ofstream object, the function also either:

   • creates a file called "myFile" if one does not exist already in the current directory or
   • discards the file's previous contents if the file already exists.

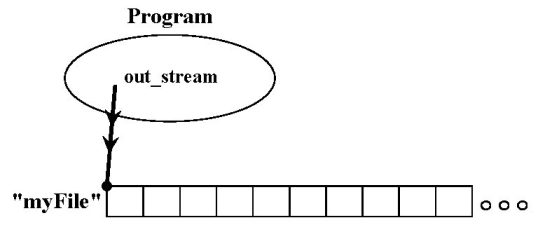

   Pictorally, we get a stream of data flowing out of the program:


   To disconnect the ifstream in_stream to whatever file it opened, we use its close() member function:

   	in_stream.close();

   To close the file that out_stream opened, we use its close() function, which also adds an end-of-file marker to indicate where the end of the file is:

   	out_stream.close();

2. Dealing with I/O Failures

   File operations, such as opening and closing files, are a notorious source of runtime errors due to various reasons. Well-written programs always should include error checking and handling routines for possible problems when dealing with files. Error checking and handling generally involves the programmer inserting statements in functions that perform I/O to check to see if any of the operations have failed. In C (the predecessor to C++), the system call to open a file returns a value after the function is called. A negative number means if the operation failed in some respect, which the program can check to see if reading from a file is alright. In C++, a simple error checking mechanism is provided by the member function fail():

   	in_stream.fail();

   This function returns TRUE if the previous stream operation for in_stream was not successful, such as if we tried to open a non-existent file. If a failure has occurred, in_stream may be in a corrupted state, and it is best not to attempt any more operations with it. The following example code fragment safely quits the program entirely in case an I/O operation fails:

   #include <iostream> // for cout definition #include <fstream> // for file I/O definitions #include <cstdlib> // for the fail member function using namespace std; int main() { ifstream in_stream; in_stream.open("myFile"); if( in_stream.fail() ) { cout << "Sorry, the file couldn't be opened!\n"; exit(1); } // the rest of the main function using in_stream defined here... } // end of the main function

   After opening the "myFile" file, the if conditional checks to see if there was an error. If so, the program will output the apologetic error message and then exits. The exit(1) function from the library "cstdlib" enables the program to terminate at that point and have it return a "1" versus a "0".

3. Reading and Writing with File Streams

   As file I/O streams work in a similar way to cin and cout, the operators ">>" and "<<" perform the same direction of data for files, with the exact same syntax.

   For example, execution of the following statement will write the number 25, a space, the number 15 and another space into the file opened by out_stream:

   	out_stream << 25 << ' '; out_stream << 15 << ' ';

   The extra space after the 25 is important because data is in a text file is separated by a space, tab or newline. Without the space, a read operation on that file would put the value 2515 into the variable. For example, suppose that after the previous statement, the program opens the same file with the input stream in_stream. The following statement would read the number 25 (not 2515) from that file:

   	in_stream >> inputn;

4. The End-of-file (EOF) for Systems that Implement eof()

   So far, the assumption was that the programmer knew exactly how much data to read from an open file. However, it is common for a program to keep reading from a file without any idea how much data exists. Most versions of C++ incorporate an end-of-file (EOF) flag at the end of the file to let programs know when to stop---otherwise, they could read data from a different file, which can be disastrous.

   Many development environments have I/O libraries that define how the member function eof() works for ifstream variables to test if this flag is set to True or False. Typically, one would like to know when the EOF has not been reached, so a common way to use this function is as a negative boolean value. An alternative implementation is to keep reading using the >> operator, which succeeds when there is still something left to read. The following two code fragments highlight the possibilities:

   Using "eof()"	Using ">>"
   while( !in_stream.eof() ) { // statements to execute // while EOF has not been // reached }	while( inputn << in_stream ) { // statements to execute // while reads are successful }

   Here is an example of a program that essentially uses the second technique mentioned above to read all the numbers in a file and output them in a neater format. The while loop to scan through a file is located in the make_neat(...) function.

   // File Name: Neatify.cpp (Display 05-06.cpp) // Illustrates output formatting instructions. // Read all the numbers in the file rawdata.dat and write the numbers // to the screen and to the file neat.dat in a neatly formatted way. #include <iostream> // for cout #include <fstream> // for I/O member functions #include <cstdlib> // for the exit function #include <iomanip> // for the setw function using namespace std; void make_neat(ifstream& messy_file, ofstream& neat_file, int number_after_decimalpoint, int field_width); int main() { ifstream fin; ofstream fout; fin.open("rawdata.txt"); if( fin.fail() ) { // oops the file did not exist for reading? cout << "Input file opening failed." << endl; exit(1); } fout.open("neat.dat"); if( fout.fail() ) { // oops the output file open failed! cout << "Output file opening failed.\n"; exit(1); } make_neat(fin, fout, 5, 12); fin.close( ); fout.close( ); cout << "End of program." << endl; return 0; } // Uses iostreams, streams to the screen, and iomanip: void make_neat(ifstream& messy_file, ofstream& neat_file, int number_after_decimalpoint, int field_width) { // set the format for the neater output file. neat_file.setf(ios::fixed); neat_file.setf(ios::showpoint); neat_file.setf(ios::showpos); neat_file.precision(number_after_decimalpoint); // set the format for the output to the screen too. cout.setf(ios::fixed); cout.setf(ios::showpoint); cout.setf(ios::showpos); cout.precision(number_after_decimalpoint); double next; while( messy_file >> next ) { // while there is still stuff to read cout << setw(field_width) << next << endl; neat_file << setw(field_width) << next << endl; } }

   This is program Neatify.cpp, which is essentially Display 5.6 of your text. The input file rawdata.txt must be in the same directory (folder) as the program in order for it to open it successfully. The program will create a file called "neat.dat" if one does not exist yet or will open the file and discard the previous contents otherwise. To download the "rawdata.txt" text file, you will need to right-click on the link.

File Names and C-Strings

	char C-string_name[LEN];

This will create a variable named C-string_name that can hold a string of length up to LEN - 1 characters. The square brackets after the variable name indicate to the compiler the maximum number of character storage is needed for the variable.

Warning:	This number must be one greater than the number of actual characters!

C-strings are an older type of string that was inherited from the C language, and people frequently refer to both types as "strings", which can be confusing.

Putting it all Together

// File Name: Streams.cpp // Ask the names for the input and output files. // Reads three numbers from the input file, sums the numbers, and writes the // sum to both the screen and the output file specified by the user. #include <fstream> #include <iostream> #include <cstdlib> int main() { using namespace std; char in_file_name[16], out_file_name[16]; // the filenames can have at most 15 chars ifstream in_stream; ofstream out_stream; cout << "This program will sum three numbers taken from an input\n" << "file and write the sum to an output file." << endl; cout << "Enter the input file name (maximum of 15 characters):\n"; cin >> in_file_name; cout << "\nEnter the output file name (maximum of 15 characters):\n"; cin >> out_file_name; cout << endl; // Condensed input and output file opening and checking. in_stream.open(in_file_name); out_stream.open(out_file_name); if( in_stream.fail() || out_stream.fail() ) { cout << "Input or output file opening failed.\n"; exit(1); } double firstn, secondn, thirdn, sum = 0.0; cout << "Reading numbers from the file " << in_file_name << endl; in_stream >> firstn >> secondn >> thirdn; sum = firstn + secondn + thirdn; /* The following set of lines will write to the screen */ cout << "The sum of the first 3 numbers from " << in_file_name << " is " << sum << endl; cout << "Placing the sum into the file " << out_file_name << endl; /* The following set of lines will write to the output file */ out_stream << "The sum of the first 3 numbers from " << in_file_name << " is " << sum << endl; in_stream.close( ); out_stream.close( ); cout << "End of Program." << endl; return 0; }

Assignment Specifics

1. Ask the user for the filename of the input and output data file.
   Both are needed.
2. Open both the specified input and output files and exit immediately with a meaningful message to the user if an error occurs.
3. Read all the real numbers from the data input file, which you may assume has only numbers of type double separated by blanks and/or line breaks, and there is at least one real number (i.e. it is not empty).
4. Echo each of the numbers read from the input file onto the screen in easy to read format with 5 decimal points of accuracy.
5. Find the maximum, the minimum, the count of how many numbers were in the file, and the average of these numbers while you are reading the data.
6. Output this information in easy to read format with 5 decimal points of accuracy to both an output file and to the screen.
7. Be sure to explicitly close all of the input and output streams that you opened before the program ends. Do not declare or open any unused streams.

• think about the structure and flow of your algorithm BEFORE you start coding and try to make your program run efficiently. Trying to take an existing program to "FIT" your needs is MUCH more frustrating and error-prone!

• include a descriptive header as a comment at the top of your source code as follows:

      // Course: CSC 306 Introduction to Programming with C++
      // Name: Your Name
      // Assignment #10: <Put a brief sentence about your program here.>
      /*
         Purpose: <Put a more in-depth description of the program here.>
       */


This assignment must be completed individually.

When you are finished with your assignment, drop your source code into the CSC306_A10 dropbox on the Academic server.
